The SensMax TAC-B EWP is a cutting-edge 60GHz mmWave radar sensor designed for high-precision, 100% GDPR-compliant people, pedestrian, and cyclist counting. Powered by a single PoE cable and protected by an IP68 weatherproof enclosure, it operates flawlessly in complete darkness, glare, or harsh outdoor conditions. Featuring a 2-in-1 dual-mode architecture, dry contact relay automation, and native MQTT integration, it is the ultimate radar solution for Smart Cities, retail, and modern building automation.

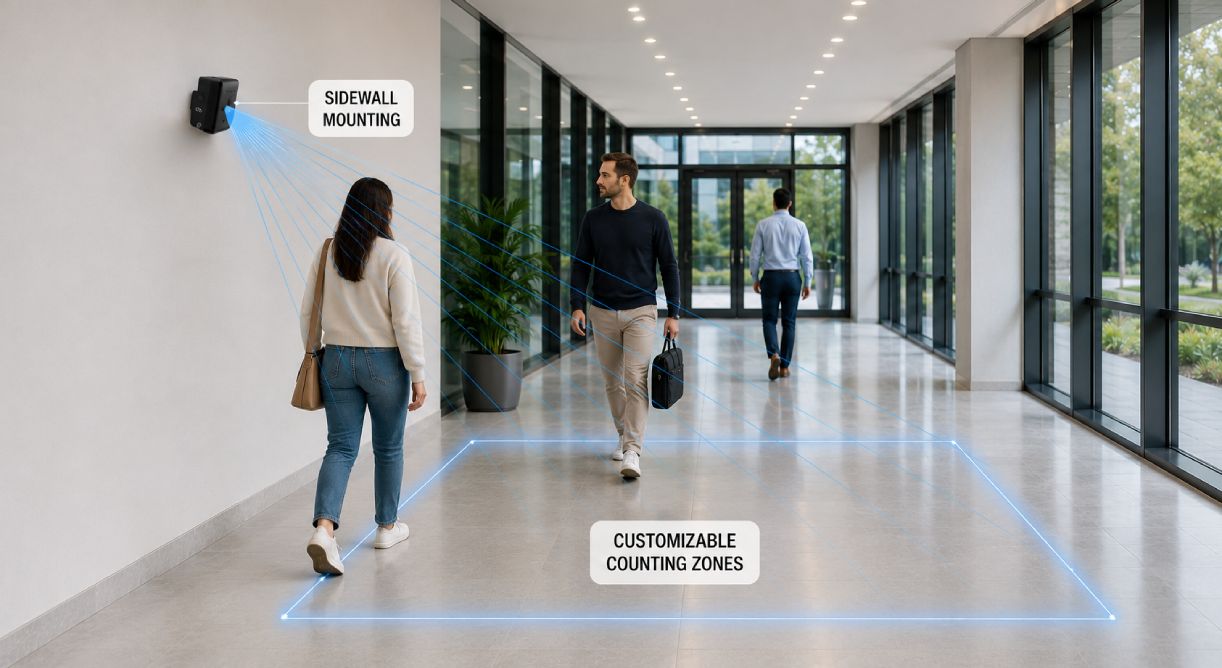

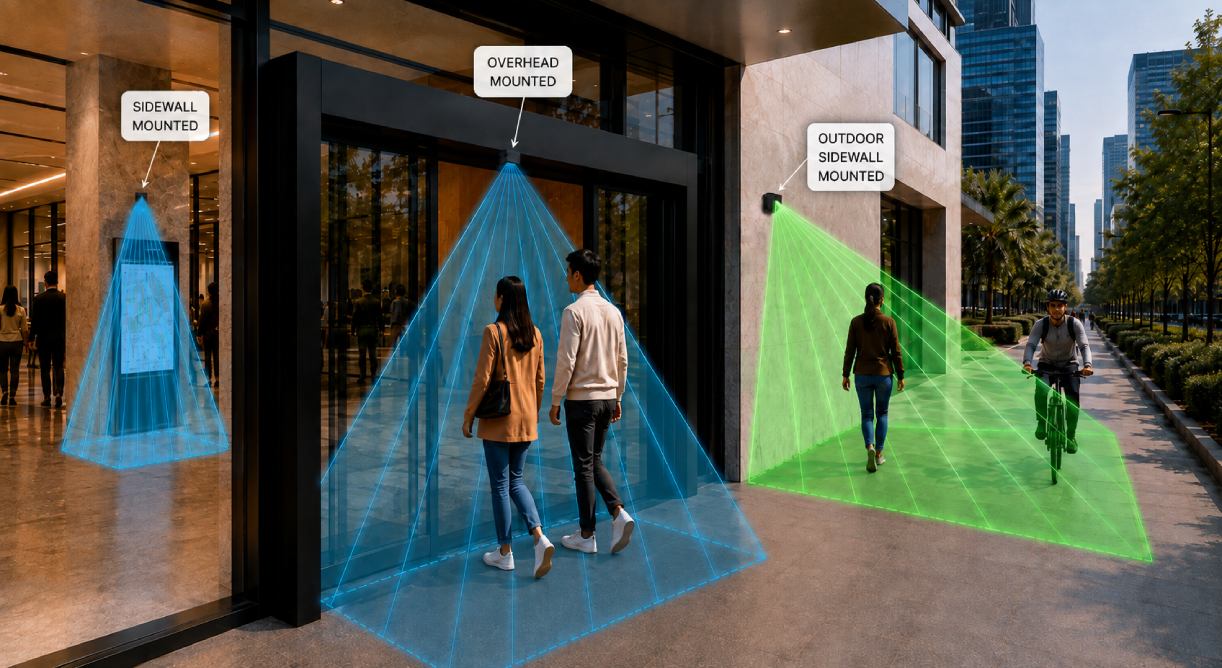

TAC-B EWP supports flexible sidewall and overhead installation for accurate people counting at entrances, indoor visitor zones, and outdoor pedestrian and bicycle routes
⚙️ Advanced Radar Analytics & Dual Architecture
60GHz mmWave Precision: Achieves up to 99% accuracy in object detection without capturing video, faces, or personal identifiers.
Smart Classification Engine:
Sidewall Mode: Tracks speed to differentiate between pedestrians and cyclists up to 50 km/h.
Overhead Mode: Measures height to distinguish adults from children.
Spatial Control: Supports up to 5 independent zones and 5 bidirectional (IN/OUT) counting lines simultaneously.
🔌 Industrial Connectivity & Hardware Integration
PoE & Single-Cable Setup: Powered via IEEE 802.3af PoE (or 2.4GHz Wi-Fi), combining data and power into one line.
Relay Output (Dry Contact): Directly triggers external systems—automating doors, lights, barriers, or security alarms upon rule breaches.
Audio Notifications: Integrated 2W speaker delivers local audio prompts based on custom triggers.
Fail-Safe Offline Logging: Stores data locally on an 8GB Micro SD card during network drops, auto-syncing upon reconnection.
🏆 Key Competitive Advantages
100% GDPR Compliant: Completely eliminates legal liability associated with video surveillance and image storage.
IP68 Weatherproof: Operates reliably from -25°C to +65°C across indoor and outdoor environments.
Smart City & BMS Ready: Native support for MQTT, HTTP API, Email, and direct Telegram notifications.
📊 Technical Specifications Overview
| Feature | Specification |
| Technology | 60 GHz mmWave Radar (Non-video) |
| Operating Modes | Sidewall (Wall/Pole) / Overhead (Ceiling) |
| Field of View | Wall: 120° H / 60° V (Up to 10m) | Overhead: 106° (Up to 7.5m) |
| Protection Rating | IP68 Polycarbonate Enclosure |
| Power Supply | PoE IEEE 802.3af (37–57V) or Wi-Fi 2.4GHz |
| Interfaces | Dry Contact Relay, 2W Speaker, Micro SD (8GB) |
| Protocols | MQTT, API, Email, Telegram |
