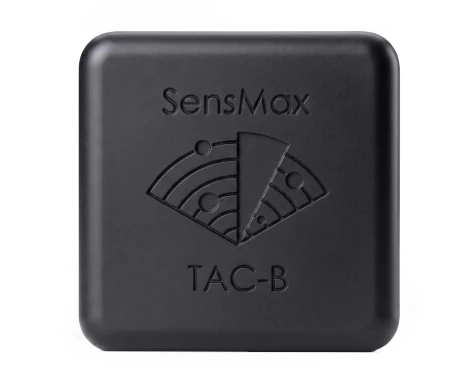

SensMax TAC-B EWP radar counter

The SensMax TAC-B 3D is a next-generation 60GHz mmWave 3D radar sensor engineered for ultra-high accuracy object counting and tracking (up to 99% precision). Operating completely lens-free and video-free, it performs flawlessly across all lighting conditions—including total darkness—as well as severe weather. The sensor ensures 100% GDPR compliance, removing legal liabilities associated with personal data collection while delivering robust traffic analytics for commercial spaces, public infrastructure, and outdoor routes.

How It Works

Using advanced 60GHz mmWave 3D radar technology, the sensor captures spatial movement without optical cameras. It features a flexible 2-in-1 dual-mode architecture, allowing operators to switch between wall-mount and ceiling-mount detection algorithms with a single click:

• Ceiling Mode (Adult vs. Child Classification): Analyzes objects by height to differentiate between adults and children, eliminating false positives caused by shopping carts or pets.

• Wall Mode (Pedestrian vs. Cyclist Classification): Classifies moving targets by speed to separate pedestrians from bicycles on multi-modal pathways.

• Multi-Zone Tracking: Tracks activity across up to 5 independent counting zones and 5 distinct counting lines simultaneously.

Installation & Connectivity

Designed for maximum deployment flexibility, the unit supports overhead ceiling mounting or sidewall installation. Connectivity options include 2.4GHz Wi-Fi and wired Ethernet with Power over Ethernet (PoE) for single-cable power and data delivery. Enclosed in an IP68-rated weatherproof housing, it withstands extreme outdoor environments, heavy rain, snow, and temperature fluctuations.

Key Features & Technical Advantages

• 100% GDPR & Privacy Compliant: Non-optical radar tracking guarantees total privacy without recording video or personal identifiers.

• Smart Height & Speed Classification: Automatically categorizes targets by height (ceiling mode) or speed (wall mode).

• Built-in Relay & Audio Alert Speaker: Integrated dry contact relay automates door opening, lighting, or gate control, while an internal speaker plays trigger-based local audio alerts.

• Open IoT Integration: Supports native MQTT protocol, automated email reporting, and direct real-time Telegram notifications.

• Onboard Offline Data Logging: Micro SD card slot enables local data backup during network outages, automatically synchronizing with central servers once connectivity re-establishes.

• IP68 Weatherproof Protection: Industrial-grade housing protects internal electronics against water immersion, dust, and severe weather.

Applications & Real-World Use Cases

• Retail Stores & Shopping Malls: Gather precise foot traffic analytics filtered by adult/child height profiles to compute true customer conversion rates.

• Pedestrian Paths & Cycleways: Monitor multi-use outdoor paths by differentiating between walking pedestrians and fast-moving cyclists based on speed.

• Smart Access Control & Building Automation: Trigger automatic doors, HVAC, or lighting systems via the internal relay upon presence detection.

• Perimeter & Restricted Zone Security: Emit localized audio warnings via the internal speaker when unauthorized individuals enter defined zones.
