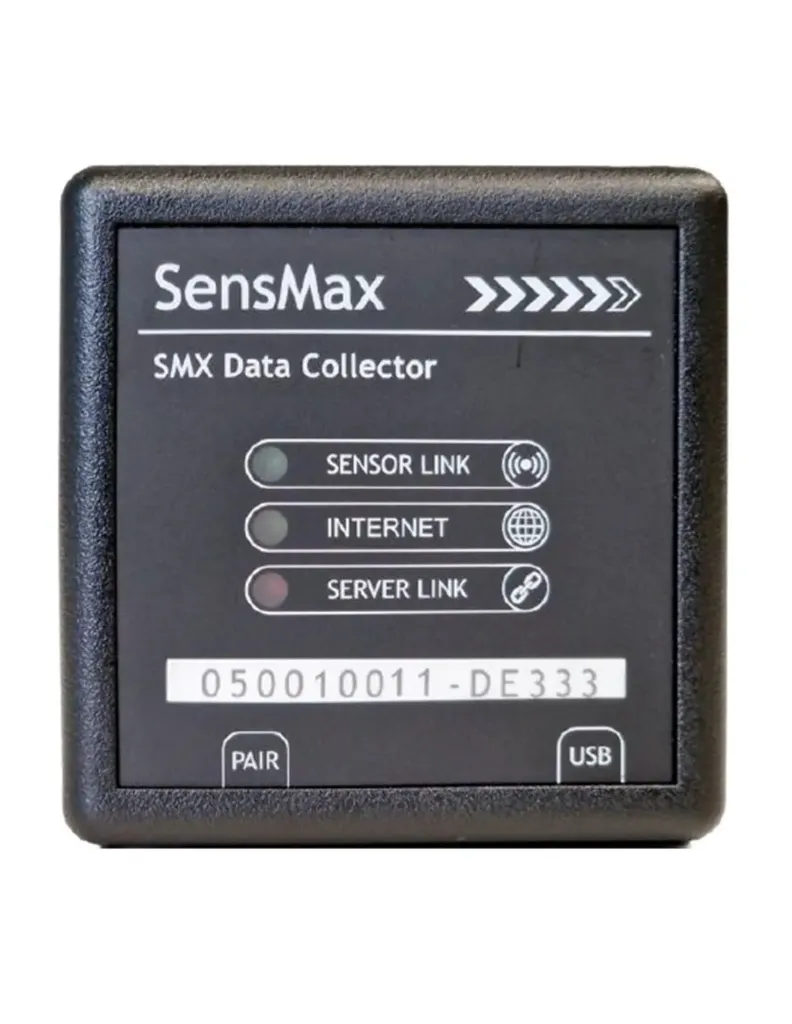

SensMax Gateway WiFi SLR Pro Automatic Data Collector

The SensMax SMX Gateway is a centralized hub engineered to aggregate telemetry from wireless SensMax people counting sensors and customer feedback survey buttons. Operating over a secure RF radio channel, it reads statistics automatically and transmits them to the cloud-based SensMax Reporting Portal via Wi-Fi or Ethernet. Supporting up to 30 connected devices, the SMX gateway simplifies multi-sensor deployment across retail stores, corporate offices, public institutions, and commercial facilities.

How It Works

The SMX gateway polls connected sensors every 20 minutes, gathering raw footfall and customer feedback counts before pushing the encrypted data to the SensMax online reporting system. Telemetry can also be exported directly to third-party analytics software via native MQTT protocol support. If the internet connection drops, the gateway logs up to 25 days of hourly data internally, automatically synchronizing with the central server once connectivity is restored.

Installation & Connectivity

Featuring a true plug-and-play installation, the gateway connects using standard Ethernet (primary) or 2.4GHz WPA2-PSK Wi-Fi. Upon connecting to a network router, it automatically initiates background data transfers. To accommodate diverse building sizes and outdoor areas, three model variants are available offering communication ranges up to 1,000 meters (sensors and gateway must match the same range protocol: Pro, LR, or SLR).

Key Features & Strategic Advantages

• Dual Network Connectivity: Equipped with Ethernet and Wi-Fi interface options featuring automatic failover switching for continuous uptime.

• Onboard Backup Memory: Stores up to 25 days of detailed hourly statistics internally during network outages to prevent data loss.

• Versatile Range Options: Available in three RF coverage tiers to communicate with sensors at distances up to 1,000 meters.

• Open System MQTT Integration: Supports direct data streaming via MQTT protocol for seamless integration into third-party BMS, ERP, or custom analytics dashboards.

• Plug-and-Play Setup: Fast, hassle-free deployment without complex local network configurations or firewall modifications.

Available Range Models

Applications & Real-World Use Cases

• Retail Stores: Centralize data from entrance people counters and customer satisfaction survey buttons to evaluate store performance and conversion rates.

• Shopping Malls: Aggregate foot traffic metrics across multiple entrances, corridors, and floors into a unified cloud dashboard.

• Libraries & Museums: Collect automated visitor counts and visitor feedback logs to generate audit-ready compliance and funding reports.

• Public Restrooms: Track visitor throughput to optimize janitorial cleaning rotations based on actual usage demand.

• Corporate Office Buildings: Monitor floor occupancy trends and meeting space utilization to guide workplace optimization.

Business Impact

The SensMax SMX Gateway eliminates complex wiring between field sensors and central servers, significantly reducing deployment time and installation labor costs. Dual network connectivity coupled with robust onboard memory buffers ensures uninterrupted data integrity—giving facility managers and retailers reliable, continuous visibility into operational performance.
