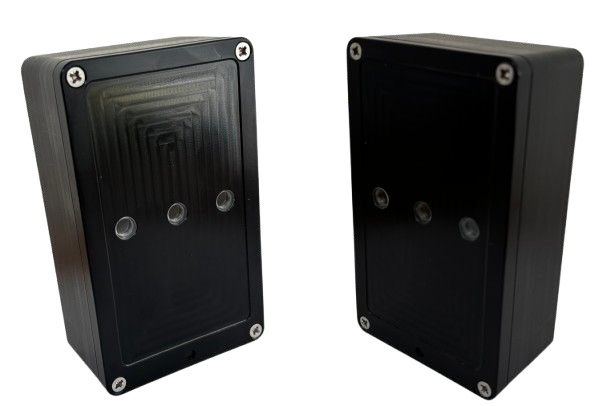

Outdoor People Counter: Weatherproof LoRaWAN Sensor

The IMBuildings LoRaWAN Outdoor People Counter is a robust, battery-powered sensor engineered for accurate visitor tracking across public parks, hiking trails, and outdoor facilities. Encapsulated in a vandal-resistant, IP67-rated enclosure, it delivers long-range, GDPR-compliant footfall analytics over private or public LoRaWAN networks—completely eliminating external power needs and recurring cellular subscription fees.

How It Works

The system utilizes active infrared beam optics to monitor visitor movement across outdoor pathways or entrance gates up to 6 meters wide. As visitors break the beam line, the unit locally registers count increments and transmits encrypted LoRaWAN data payloads to your network server at pre-configured reporting intervals.

Installation & Connectivity

Designed for flexible, cable-free outdoor mounting, the sensor attaches securely to utility poles, trees, or structural gates. Functioning as a Class A LoRaWAN device with OTAA activation and Adaptive Data Rate (ADR), it supports all major global frequency bands (EU868, US915, AU915, AS923-1). Local configuration is completed wirelessly via NFC using an Android mobile app, with full remote adjustments available through downlink commands.

Key Features & Strategic Advantages

• LoRaWAN LPWAN Integration: Connects seamlessly to private or public LoRaWAN gateways with minimal bandwidth overhead and zero recurring SIM fees.

• Weatherproof & Vandal-Resistant: Industrial-grade, IP67-equivalent housing withstands extreme temperatures, heavy rain, snow, and physical impact.

• Ultra-Long Battery Longevity: Powered by a high-capacity 3.6V Lithium battery (LS33600), delivering up to 3 years of maintenance-free operation.

• Wide Thermal Tolerance: Operates reliably in harsh outdoor climates across temperature ranges from -20°C to +60°C.

• Flexible Dual Configuration: Fast local setup via NFC Android app alongside remote downlink control for uplink intervals and detection modes.

• 100% GDPR Compliant: Captures footfall statistics completely anonymously without collecting personal data or video feeds.

Applications & Real-World Use Cases

• Public Parks & Hiking Trails: Track foot traffic volume across recreational routes and trailheads for municipal planning and maintenance scheduling.

• Municipal Infrastructure: Monitor pedestrian flow through public plazas, beachfront walkways, and community open spaces.

• Botanical Gardens & Zoos: Automate visitor footfall collection across outdoor exhibits, walkways, and secondary entrances.

• University & Corporate Campuses: Measure outdoor pedestrian activity between buildings, courtyards, and campus transit access points.

Business Impact

The IMBuildings Outdoor LoRaWAN People Counter eliminates manual counting in remote outdoor environments, providing municipalities and campus operators with automated, real-time traffic metrics. Leveraging long-range LoRaWAN infrastructure significantly lowers long-term operational expenditure while supplying reliable data for budget allocations, grant applications, and facility planning.

Technical Specifications
